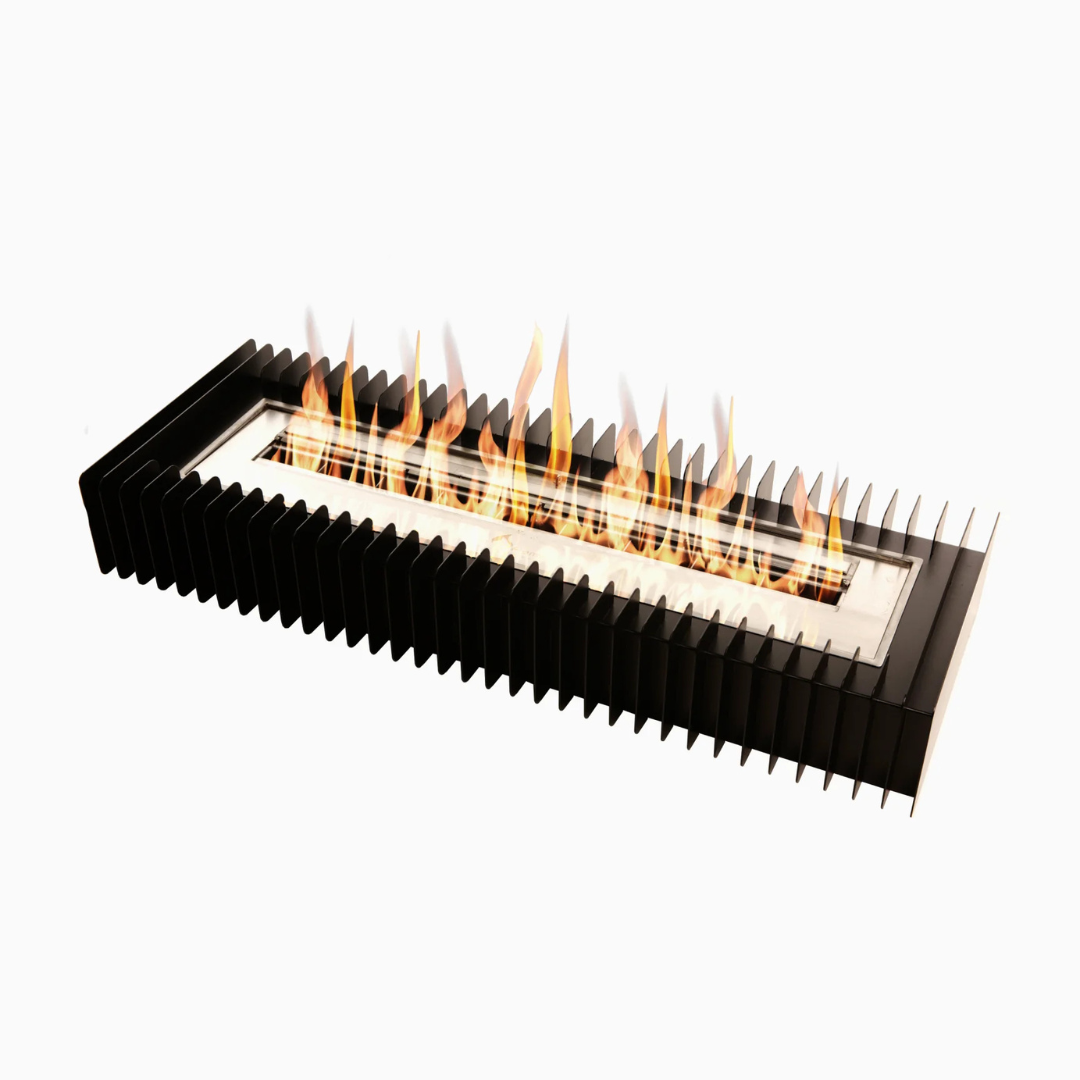

Biolame 38" Grate Kit

Biolame 38" Grate Kit

$2,876.00 USD
$2,876.00 USD
Sale Sold out
Shipping calculated at checkout.

38" Grate Kit

The 38" Grate Kit is a ventless ethanol fireplace insert designed to convert an existing wood-burning, gas, or decorative fireplace into a clean-burning bioethanol fireplace. It provides a real flame without requiring a chimney, vent, gas line, or electricity.

Built from 304 stainless steel with an insulated bottom tray, this kit has an 11L fuel capacity and a maximum thermal output of 27,000 BTU/h. It supports indoor and outdoor applications, with installation on a stable, non-combustible surface.

Key Features

  • Fireplace Conversion: Converts an existing fireplace opening into a bioethanol fireplace without permanent modifications or utility connections.
  • Ventless Operation: Requires no chimney, vent, gas line, or electrical connection.
  • Stainless Steel Construction: Made from 304 stainless steel with an insulated bottom tray.
  • Real-Flame Heating: Delivers a maximum thermal output of 27,000 BTU/h.
  • Extended Burn Time: Provides an approximate burn time of 11 hours, with fuel consumption listed at 1L per hour.
  • Indoor and Outdoor Application: Suitable for indoor and outdoor installations that meet the installation requirements.
  • Removable Installation: Can be removed or repositioned without modifying the existing fireplace.
  • Safety Certification: CE approved and certified, certified to EN 16647, and third-party tested.

Specifications

  • Construction: 304 stainless steel
  • Bottom Tray: Insulated
  • Fuel Type: Bio Ethanol Fuel
  • Fuel Capacity: 11L
  • Maximum Thermal Output: 27,000 BTU/h; 7.9 Kw
  • Average Indoor Heating Area: 93m² or 1,001ft²
  • Fuel Consumption: 1L per hour
  • Approximate Burn Time: 11 hours
  • Minimum Room Size: 250 sq. ft. per burner
  • Overall Dimensions (H x W x D): 6.3 x 42.2 x 15.8 in.; 160 x 1071 x 401 mm
  • Approximate Weight: 79 lbs
  • Application: Indoor & Outdoor
  • Certifications: CE approved and certified; EN 16647
  • Testing: Third-party tested

Size Guide

  • Overall height: 6.3 in. (160 mm)
  • Overall width: 42.2 in. (1071 mm)
  • Overall depth: 15.8 in. (401 mm)
  • Minimum indoor room size: 250 sq. ft. per burner.
  • Use the actual unit when determining final installation dimensions, and follow the installation manual’s clearance requirements.

Compatibility

  • Compatible With: Existing wood-burning, gas, or decorative fireplace openings that meet the installation requirements.
  • Installation Surface: Stable, non-combustible surfaces such as masonry, stone, brick, or concrete.
  • Enclosed Fireplace Openings: Installation is permitted only where the opening meets the requirements outlined in the user manual.

Included

  • 38" grate kit
  • Lighting rod
  • Lighter
  • Funnel

Product Support

Warranty & Support

At Outer Nest Living, we stand behind the quality of every The Bio Flame product we sell. Should an issue arise, our support team is your point of contact to help coordinate your warranty claim with the manufacturer.

The Bio Flame 3-Year Manufacturer Warranty

Coverage: Eligible The Bio Flame products purchased through Outer Nest Living carry a 3-year manufacturer warranty from the purchase date, covering factory defects and malfunctions affecting normal operation.

Registration Requirement: Register your warranty with The Bio Flame within 1 year of purchase for coverage to be valid.

Inspection and First-Use Claims: Open, inspect, and test your product within 1 year of delivery. Claims for missing components or issues discovered during initial installation or first use must be submitted within that period.

Exclusions: Coverage excludes shipping damage, improper handling or installation, misuse, negligence, inadequate maintenance, unauthorized modifications or repairs, incompatible accessories, unsuitable fuel, improper refueling, and environmental damage caused by unsuitable exposure.

How to Submit a Warranty Claim: Contact the Outer Nest Living support team with proof of purchase, the model and SKU, a description of the issue, and supporting photographs. Additional documentation may be requested. All claims are subject to The Bio Flame’s review and approval.

Processing Time: Warranty service and approved replacement delivery may each take up to 12 weeks, depending on service personnel and inventory availability.
